RMBridge - Lesson 01 - Axis definition in plan

 Lesson 01 - Axis definition in plan

• This lesson shows how to model a Axis in plan on RMBridge program
• Open RMBridge program
• Intitial setting RMBridge program
• Double click the Modeler in the menu

• Click the Axis menu then click menu New Axis
• Click Ok in the New Axis dialog
• Click P0 icon to setup the original point

• Then press OK in this dialog

• Click the straight line by click this icon

• Put 20 in dialog box, then click Ok button

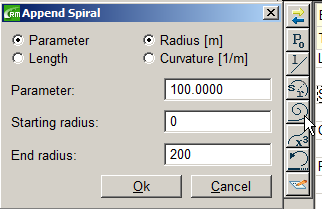

• Then continuous

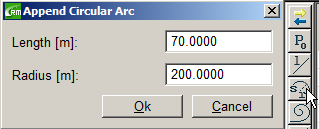

• And

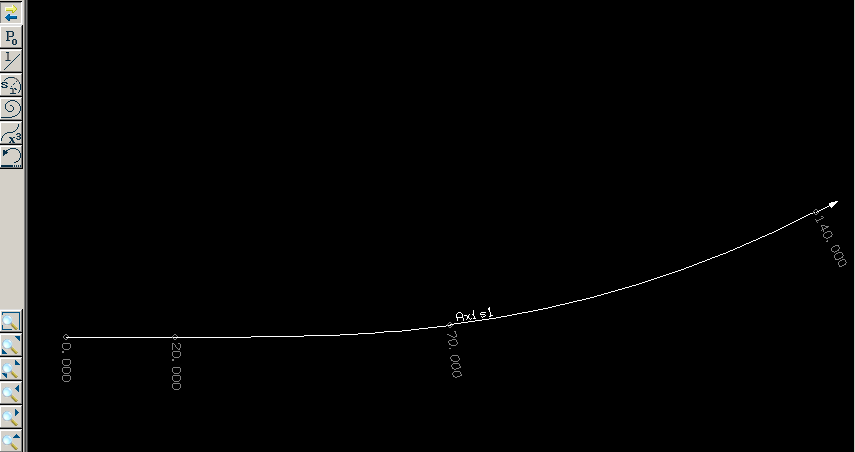

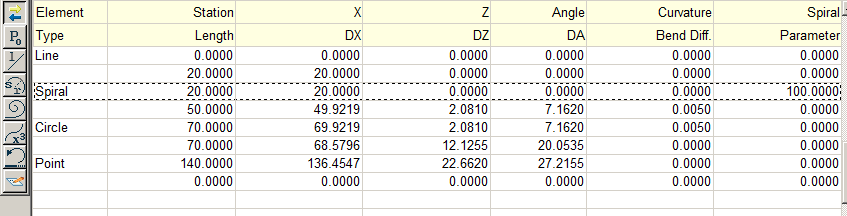

• After finish all steps, can you see the drawing and the data table

That’s all !

And you can folow this tutorial video:
